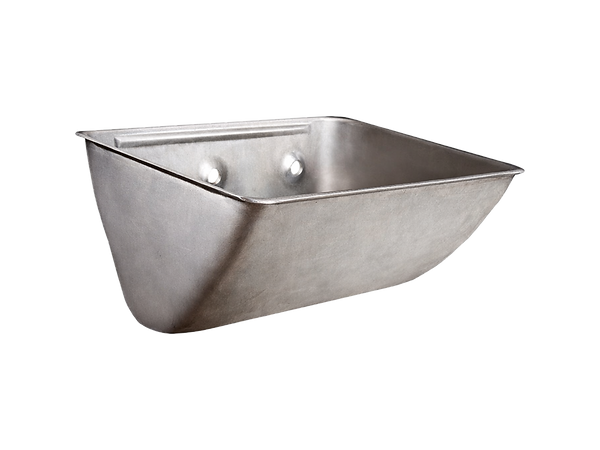

SM Steel Bucket


SM Steel Buckets are mid-depth, seamless pressed components manufactured without welds or joints, ensuring superior structural integrity and reliability. Their smooth internal and external surfaces promote efficient material flow, enabling consistent filling and discharge across a range of conveying applications.

​

Available in Carbon Steel and Stainless Steel, they are well suited for demanding and high-temperature environments. Their robust construction delivers excellent strength, durability, and long service life, making them ideal for continuous industrial operation.

Technical Parameters

Model
A (mm)
B (mm)
C (mm)
Thickness (mm)
D (mm)
E (mm)
No. of Holes
Hole Ø (mm)
Capacity (Z–Y) (L)
Capacity (X–Y) (L)
SM0808
85
80
58
1
16
43
2
8
0.18
0.21
SM1009
106
89
66
1
20
50
2
9
0.25
0.33
SM1312
138
120
88
1.5
25
70
2
9
0.64
0.82
SM1612
170
130
124
1.5–2.0
35
100
2
9
0.89
1.31
SM1614
168
147
112
1.5–2.0
30
100
2
9
1.2
1.58
SM1814
188
147
112
1.5–2.0
30
100
2
9
1.38
1.77
SM2314
234
147
112
1.5–2.5
32
120
2
9
1.78
2.3
Page 1 of 1

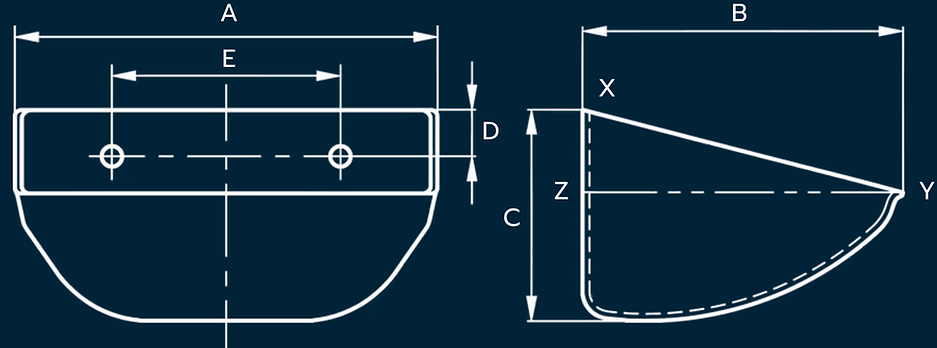

Screenshot 2569-05-13 at 12.26.14.png
